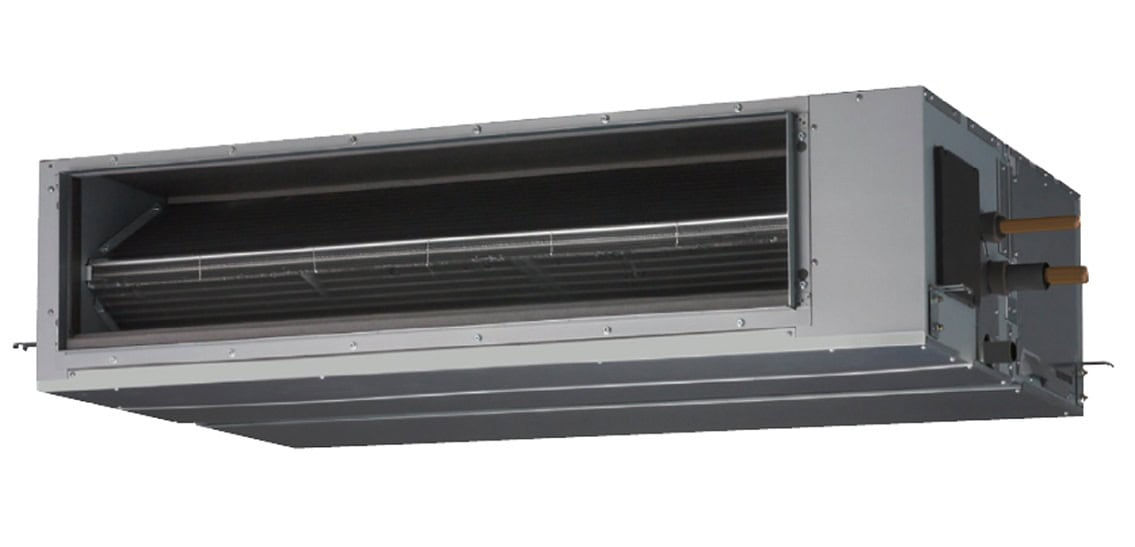

Fujitsu ARYG 54 LHTBP Mini Central Air Conditioner
Technical specifications:
6 horsepower
Energy rating – A
Cooling:
Cooling output BTU 52,886
Description
Fujitsu ARYG 54LHTBP Mini Central Air Conditioner
Technical specifications:
6 horsepower
Energy rating – A
Cooling:
Cooling output BTU 52,886
Operating range 15,345-54,400 BTU
Input power: 4.3 KW
Maximum input power: 3.6 KW
EER: 3.2
Current consumption: 10.95 A
Maximum current consumption: 12 A
Moisture removal: 2.5 L/H
Heating:
Heating output BTU 54,592
Operating range 19,790-57,300 BTU
Input power: 4.4 KW
COP: 3.64
Current consumption: 11.4 A
Maximum current consumption: 12 A
Noise level:
Indoor unit: 39/35/31/29
Outdoor unit: 55
weight:
Condenser: 104 kg
Evaporator: 46 kg
Air flow:
High: 1,600 cfm
Medium: 1,400 cfm
Low: 1,100 cfm
Outdoor unit: 900 cfm
Static pressure (standard): 200~30
External working temperature:
Cooling: -10~46 ºC
Heating: -15~24 ºC
Control type: Kiri thermostat (wireless remote option)
plumbing:
Pipe diameter: 3/8 – 5/8
Maximum length: – 75 meters
Minimum length: 5 meters
Height difference: 30 meters
Refrigerant type: R-410A
Amount of refrigerant in the condenser: 3,450 grams
Piping without refrigerant charging: 30 meters
Additional refrigerant per meter of piping: 50 grams per meter
Power supply:
Input: 400V 3PH 50HZ
Feed: In a condenser
Power cable (mm2*cores): 4*5
Cable between units (mm2*cords): 1.5*4
Delayed AMT: 16Ax3 / 25Ax1
Dimensions
Internal dimensions:
Height: 30 cm
Width: 140 cm
Depth: 70 cm
External dimensions:
Height: 129 cm
Width: 90 cm
Depth: 33 cm
Evaporator air vents: (length*height)
Supply: 217*1,162
Suction: 262*1,295
Fujitsu ARYG-54LHTBP Mini Central Air Conditioner – AOYG-54LA/LB
